Shaft Alignment Horizontal

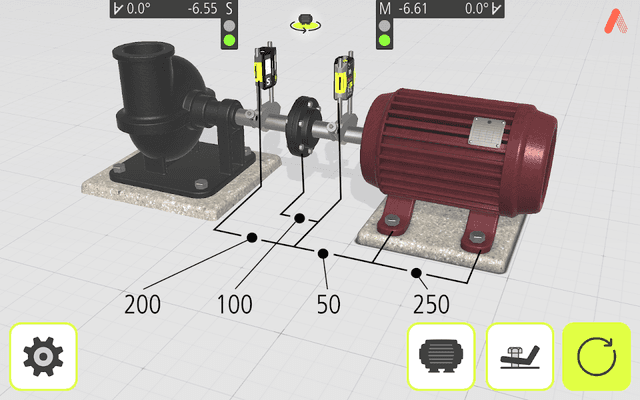

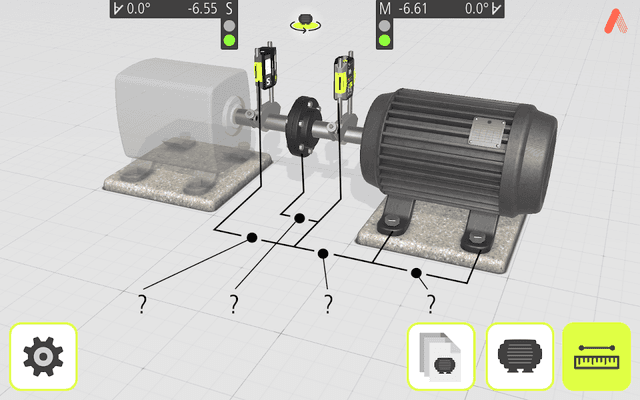

Shaft Alignment Horizontal is a companion app for performing precision horizontal shaft alignment using ACOEM's RT 300, AT400, AT300, AT200, and AT100 sensors. Designed for technicians working with motors, pumps, and other coupled machinery, this app guides you through every step of the measurement and alignment process via Bluetooth-connected sensors.

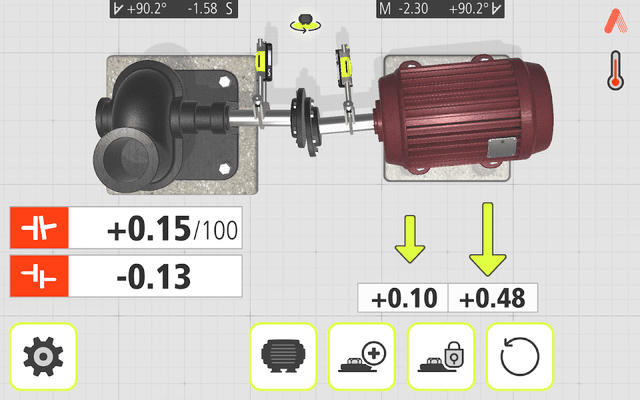

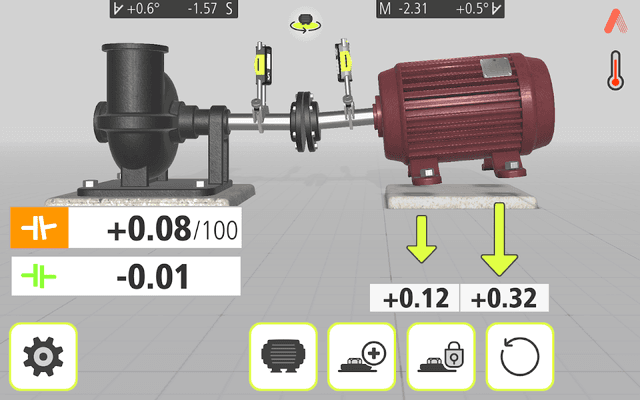

The app features GuideU, an icon-based, color-coded adaptive interface that simplifies complex alignment tasks. You'll navigate measurement workflows intuitively, reducing setup time and human error on the job site. VertiZontal technology lets you adjust machines both vertically and horizontally without re-measuring, saving time during fine-tuning phases.

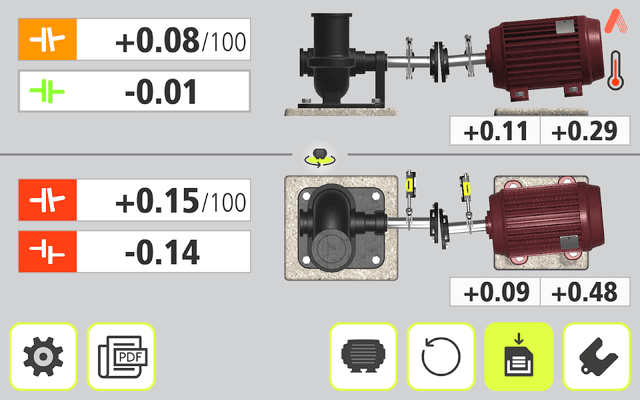

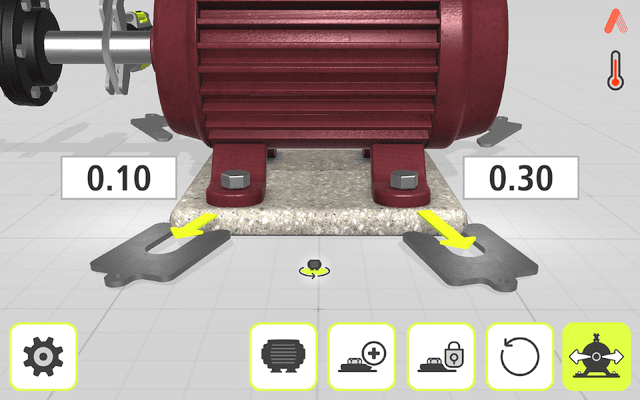

Feetlock functionality addresses base and bolt-bound machine situations where traditional alignment methods fall short, expanding the range of applications you can service. For on-site documentation, the PDF Report function converts your saved measurement data into professional reports instantly—critical when you need to hand over documentation before leaving the site.

Connectivity to the ACOEM Cloud (optional) enables instant reporting and easy sharing of alignment records with team members or clients, streamlining project handoff and compliance tracking across distributed teams.

Shaft Alignment Horizontal works exclusively with ACOEM RT-300, AT400, AT300, AT200, and AT100 sensors paired via Bluetooth. If you perform shaft alignment regularly or manage predictive maintenance programs, this app transforms a time-intensive process into a guided, documented workflow that reduces downtime and improves machine reliability.
